Part Number: 24-328258
Product Type:Suspension Shock Absorber
Series: B8 5100 (Ride Height Adjustable)
Position: Front

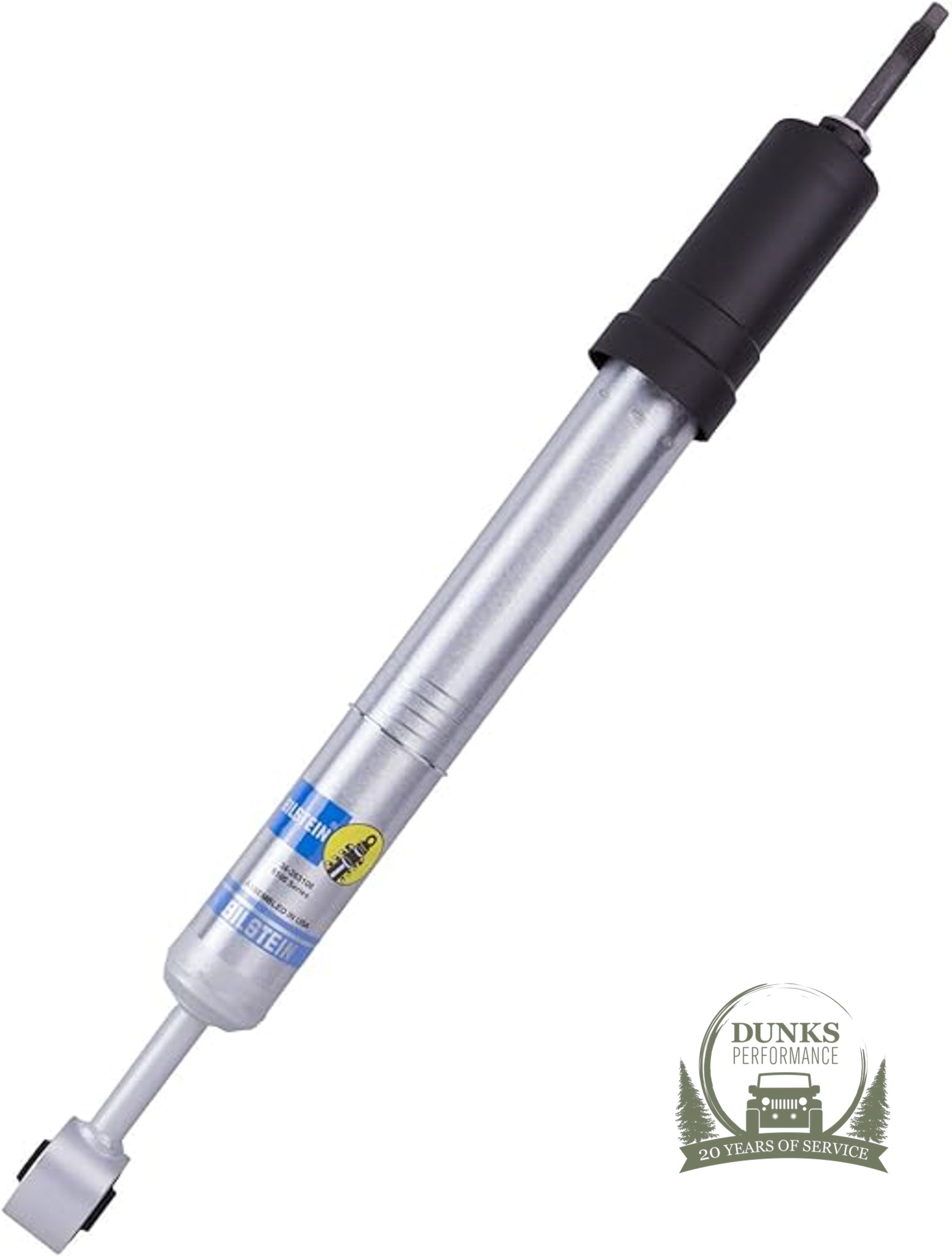

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Collapsed Length (in) :17.50
Extended Length (in) :22.31
Collapsed Length (mm) :444.6
Extended Length (mm) :566.8
Finish : Zinc Plated
Reservoir:No
Body Design:Snap Ring Grooved Body (Coilover)
Body Diameter (id):46mm
Replacement Mounting Kit : B4-KT1-Z333A01
Spring Seat Included:Yes
Adjustable Damping : Non-Adjustable
