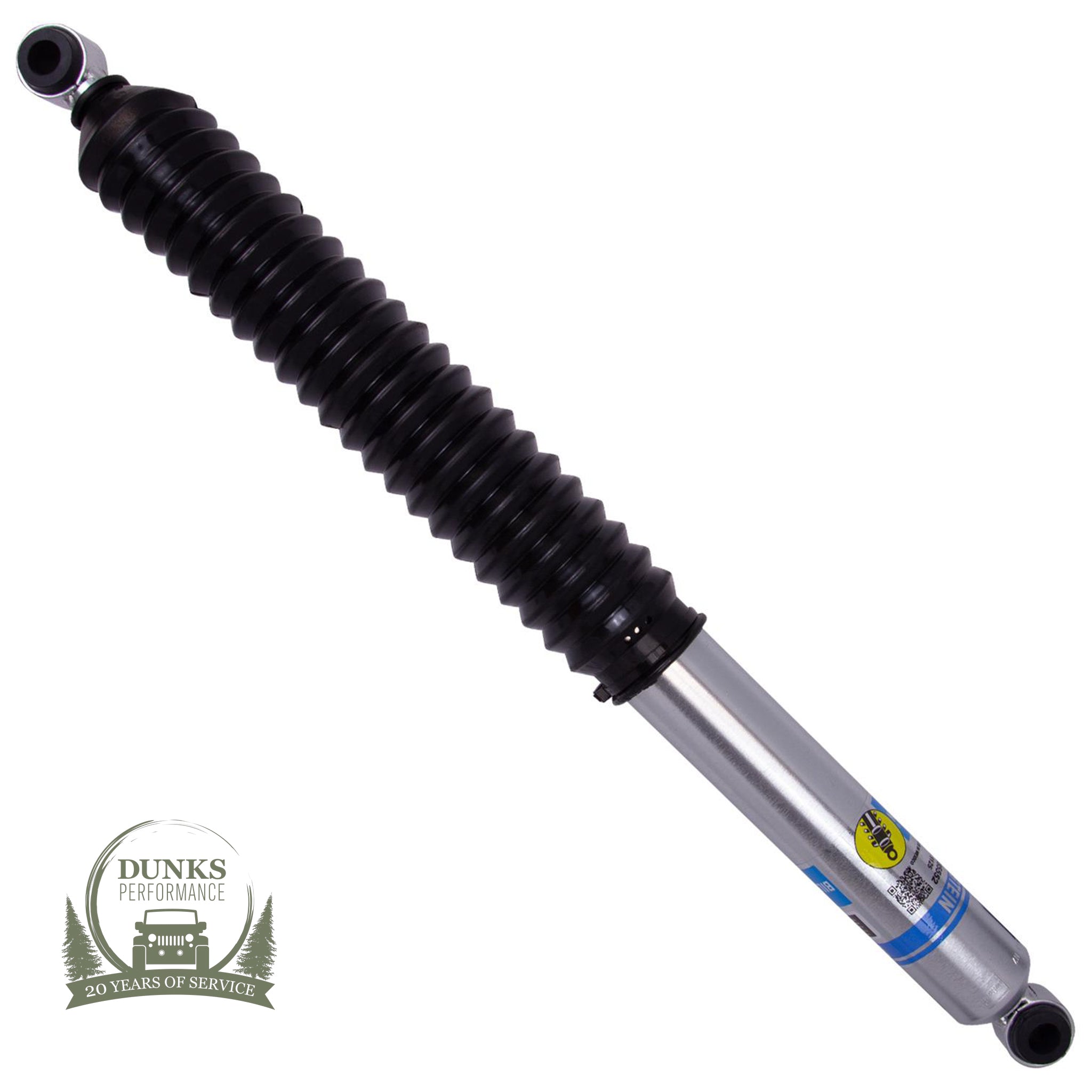

Bilstein B8 5125 Series Universal Rear Shocks (33-185552) - Toyota Land Cruiser 1961-1983 (4" Lift) - 10" Travel

Bilstein B8 5125 universal shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry-standard 5/8 inch hourglass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

Important Fitment Note:

While these are universal shocks popular for custom off-road builds, this specific length and valving are designed to perfectly fit 1961-1983 Toyota Land Cruiser (Base & FJ40) models equipped with a 4-inch rear lift. They are not intended for vehicles at stock ride height.

Specifications:

• Part Number: 33-185552

• Series: B8 5125

• Position: Rear

• Lift Height Requirement: 4" Rear Lift

• Travel (in): 10.02

• Collapsed Length: 15.91 in (404.0 mm)

• Extended Length: 25.93 in (658.5 mm)

• Mount Type (Upper & Lower): Eye-to-Eye (5/8in)

• Compression @0.52m/s: 700

• Rebound @0.52m/s: 2550

• Body Diameter (id): 46mm

• Body Design: Smooth Body (Non-Coilover)

• Finish: Zinc Plated

• Boot Included: Black Bellows

• Reservoir: No

• Adjustable Damping: Non-Adjustable
