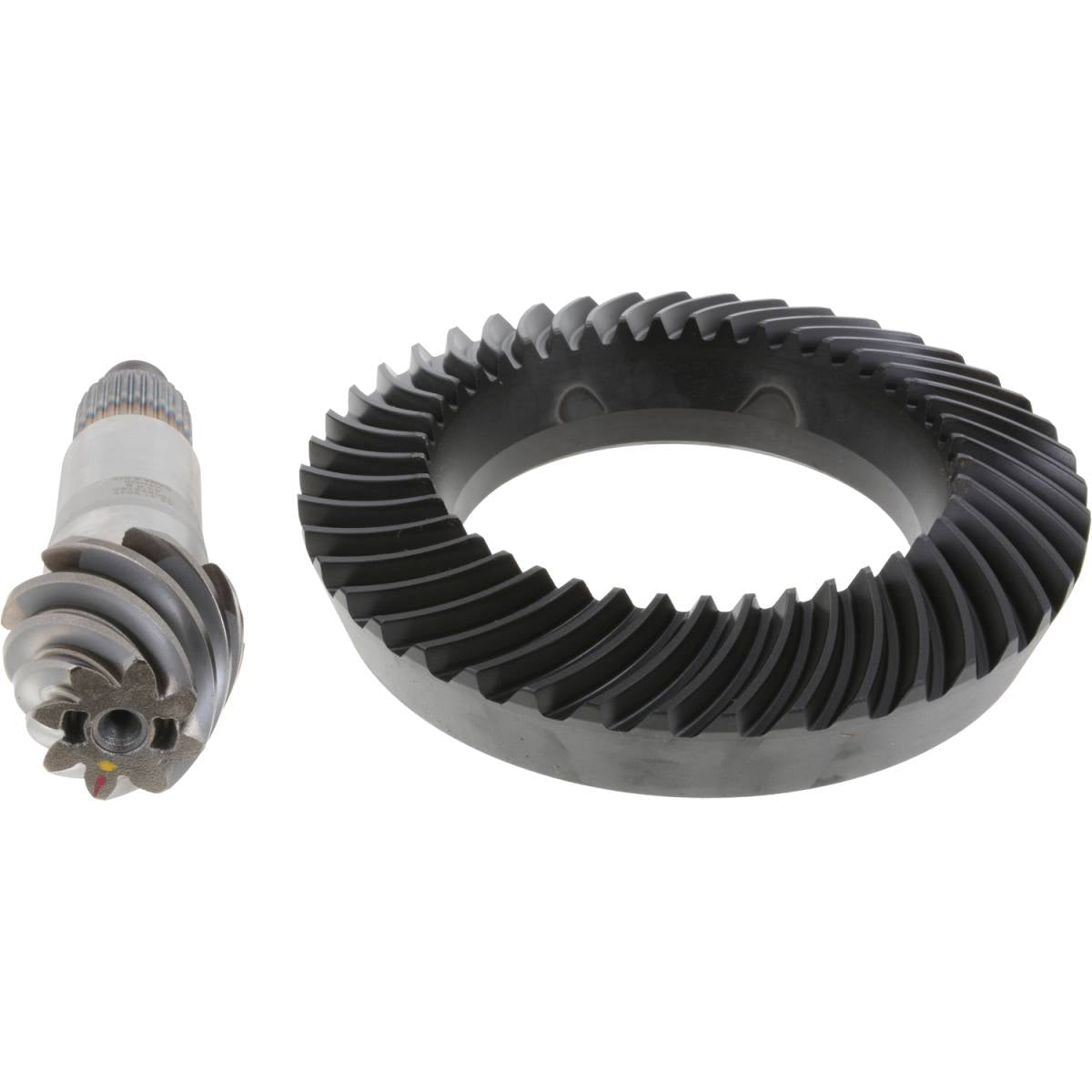

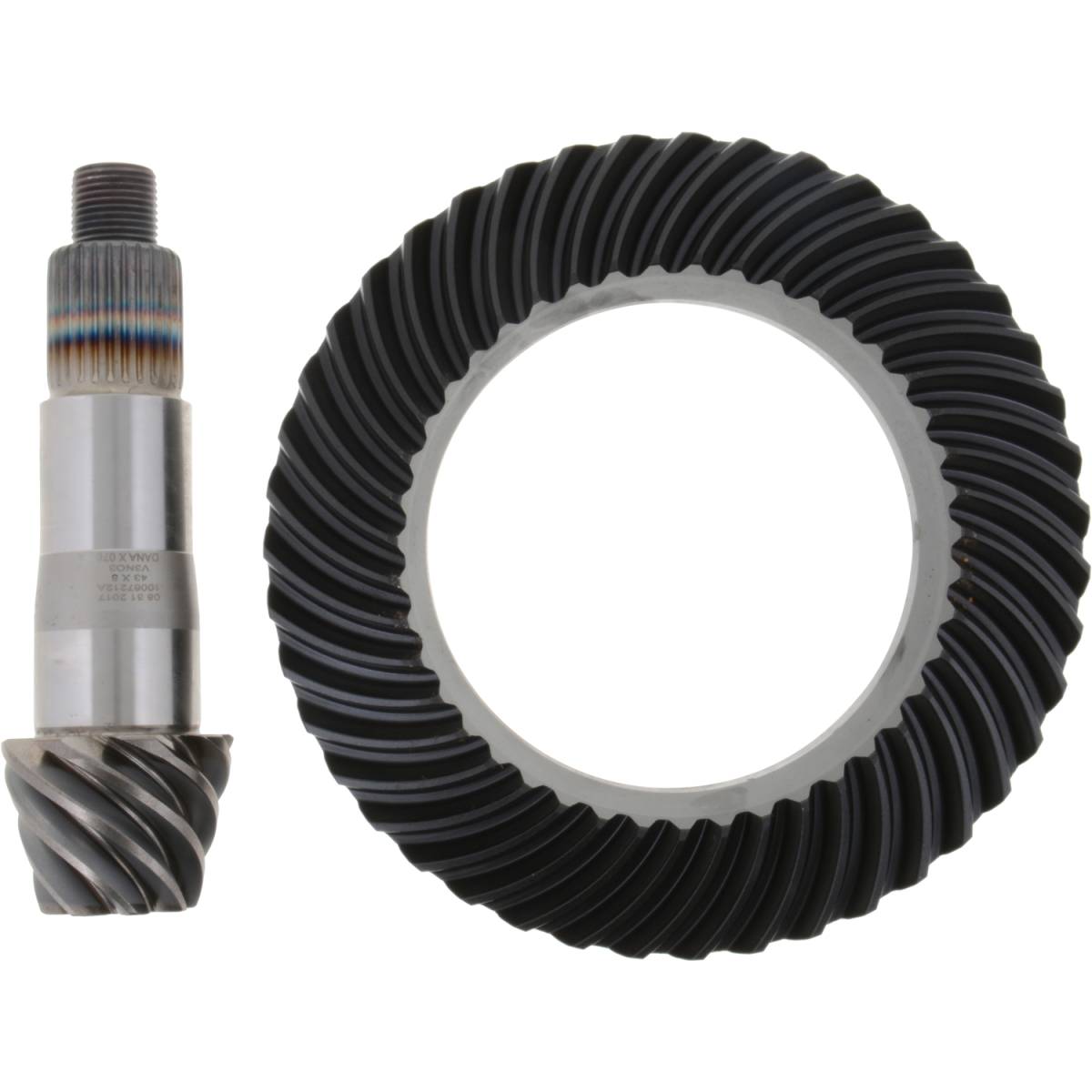

Dana 44 AdvanTEK Front Ring and Pinion Gear Set 4.88

Upgrade your Jeep Gladiator's off-road capabilities with the genuine Spicer Ultimate Dana 44™ AdvanTEK® Front Axle for the Jeep Gladiator JT Ring and Pinion Gear Set. Manufactured to precise original equipment (OE) specs by Dana, these gears deliver the bolt-in convenience and rock-solid durability needed to handle the most punishing off-road conditions and accommodate larger tire sizes.

Key Specifications:

• Manufacturer: Dana Spicer

• Part Number: 2019749

• Axle Placement: Front

• Gear Ratio: 4.88

• Ring Gear Tooth Count: 39

• Pinion Gear Tooth Count: 8

• Vehicle Fitment: 2020+ Jeep Gladiator JT

Rebuild & Torque Specifications (Jeep JT):

• Ring Gear Backlash: 0.005” - 0.008”

• Ring Gear Bolt Torque: 95 - 105 ft-lbs (Dana Part# 2007292)

• Pinion Nut Torque: 160 ft-lbs (Dana Part# 44189)

• Pinion Torque to Rotate (PTR): PTR + 3.3 / 4.9 in-Ibs

Note: Image is for illustrative purposes. Pinion nut and hardware are sold separately
