MetalCloak Chromoly Dog-Legged Tie Rod | Jeep JK Wrangler | 7222

Upgrade your JK Wrangler's vulnerable factory steering with the MetalCloak Chromoly Dog-Legged Tie Rod. Built from massive 1.625” OD .375” wall 4130 Chromoly, this tie rod is engineered for extreme strength and clearance.

Available Steering Stabilizer Mount Options:

• No Mount (I already have a 1 5/8" Clamp): Select this if you are reusing an existing 1.625" steering stabilizer clamp.

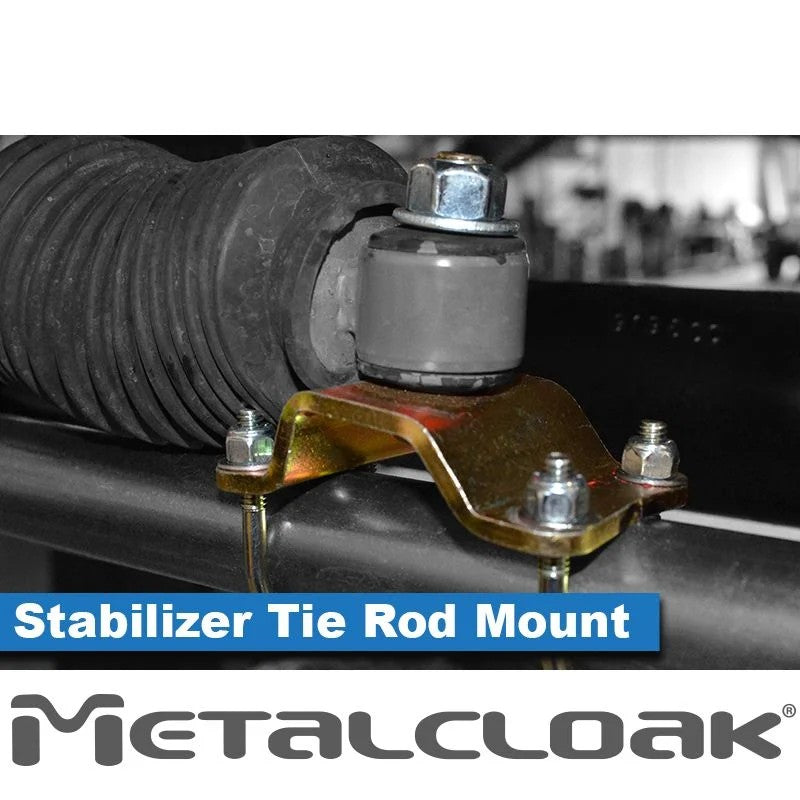

• Standard Tie Rod Mount: A heavy-duty 3/16" hot rolled steel plate bracket that easily bolts on to reposition your aftermarket stabilizer up and out of harm's way. Finished in zinc chromate.

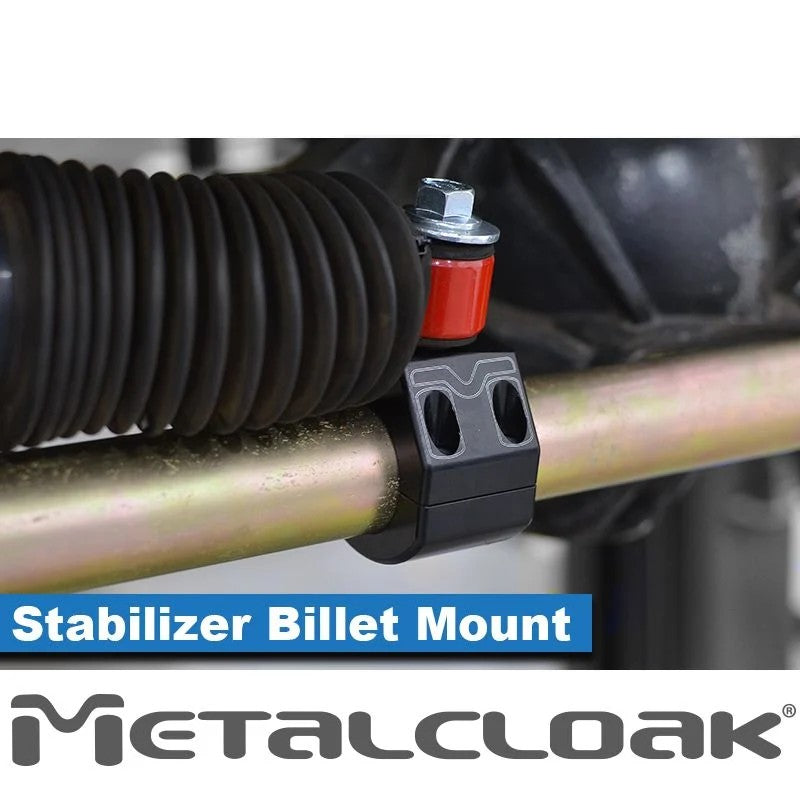

• Billet Tie Rod Mount: A premium two-piece CNC Aluminum Billet design finished in black anodize with a laser-engraved "M" logo. Allows for maximum performance positioning. (MetalCloak highly recommends using anti-seize on all billet mount bolts).

Key Features:

• Tubular 1.625” OD .375” wall ID 4130 Chromoly CDS

• Gold zinc chromate finish for superior corrosion resistance

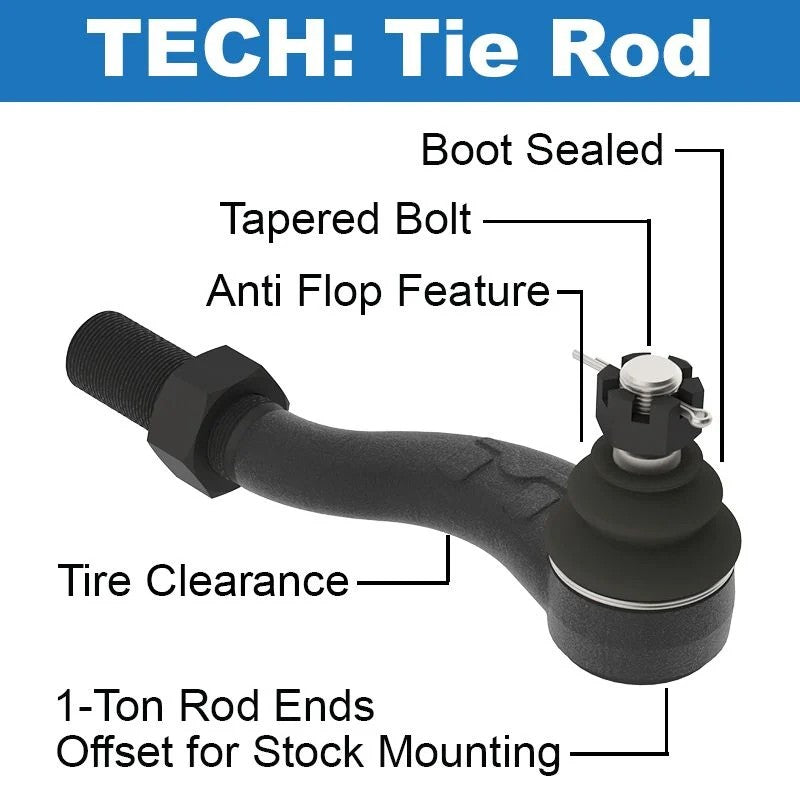

• 1-Ton forged, heat-treated, offset dog-leg rod ends

• Exclusive rod end design controls and eliminates tie rod flop

• OE taper pin and lock nut for exact factory knuckle fitment

• Sealed with durable rubber grease boots to keep debris out

• Adjustable while installed on the vehicle for easy fine-tuning

Fitment & Important Notes:

• Fits: 2007 - 2018 Jeep Wrangler JK

• Warning: Does NOT work with stock wheel backspacing. Aftermarket wheels or wheel spacers are required for proper clearance.

Frequently Asked Questions

Will the MetalCloak JK Tie Rod work with my stock wheels? No, this heavy-duty tie rod does not work with stock wheel backspacing. The massive 1-ton rod ends require aftermarket wheels with less backspacing, or the addition of wheel spacers, to provide proper clearance and prevent rubbing when turning.

What is the tie rod made of? It is constructed from normalized 4130 Chromoly steel tubing featuring a 1.625” outer diameter and a .375” wall thickness. This provides a massive 97,200 PSI yield strength, making it significantly stronger than the vulnerable factory JK tie rod.

What does the "Anti-Flop" feature do? The exclusive forged 1-ton dog-leg rod ends are engineered specifically for the Jeep JK. They allow for full side-to-side articulation to prevent binding on the trail, while intentionally limiting front-to-back movement. This eliminates the "tie rod flop" common in other aftermarket steering setups.

Do I need to weld the steering stabilizer mount? No welding is required for either mount option. Both the Standard 3/16" Steel Mount and the Billet Aluminum Mount are 100% bolt-on designs that clamp directly to the 1.625" tubing. (Note: If using the Billet mount, anti-seize is highly recommended on all bolts).

Can this tie rod be adjusted while on the Jeep? Yes. The tie rod is designed to be easily adjustable while fully installed on the vehicle, allowing you to fine-tune your alignment and toe-in without having to remove the entire assembly.
